An assortment of cotton wheel constructions for fine polishing.
Ask about sample supply, volume orders and custom specifications.

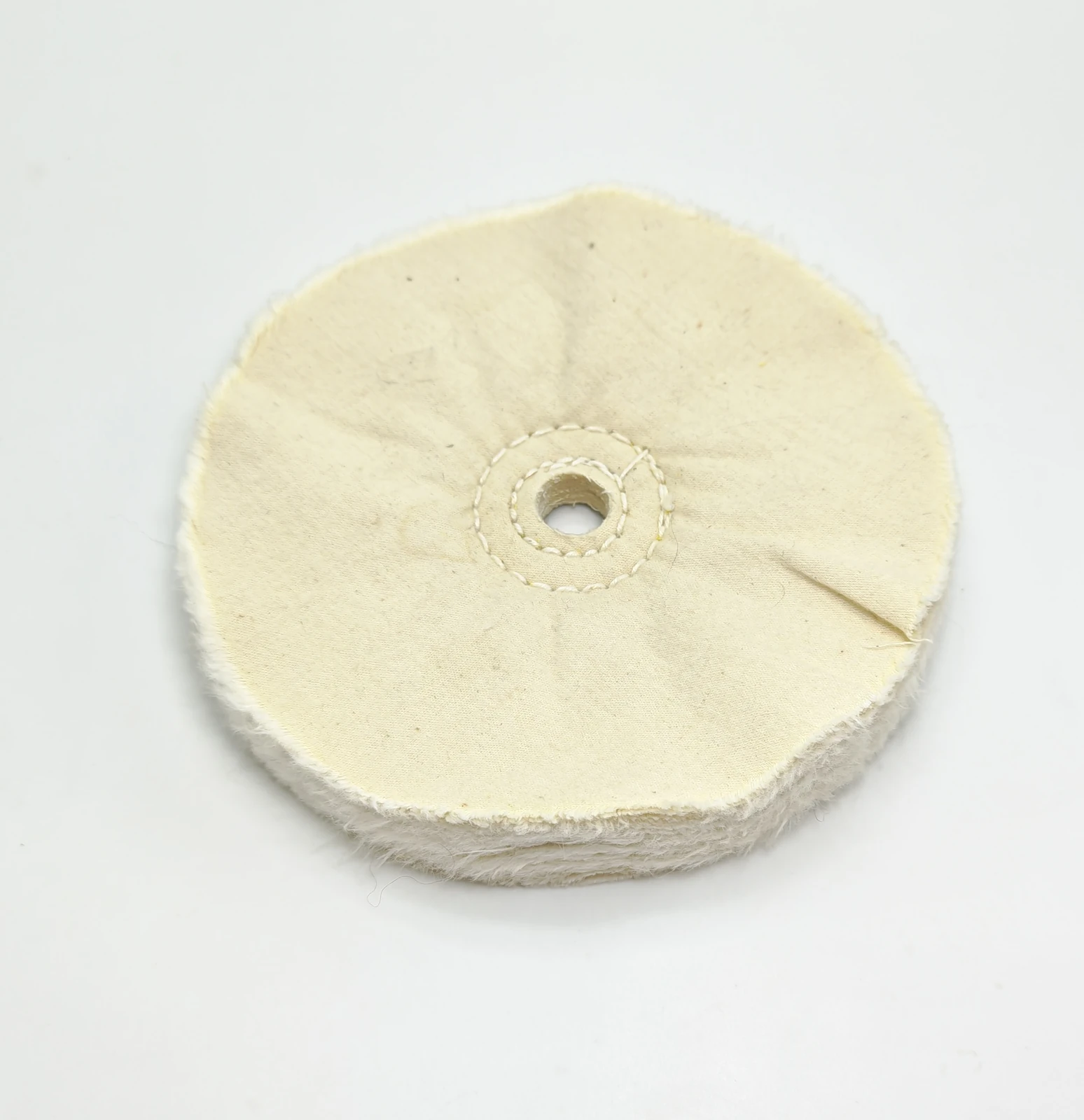

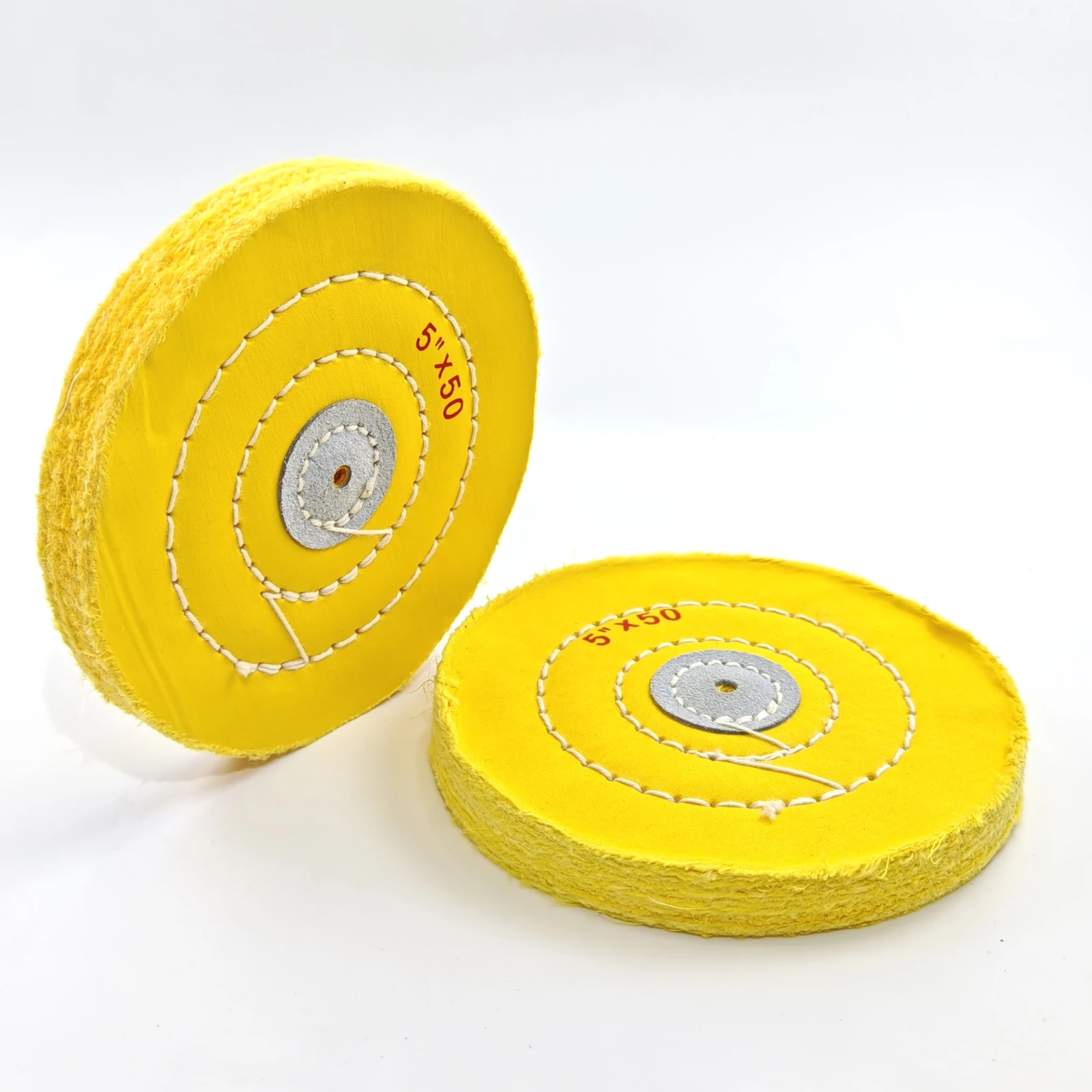

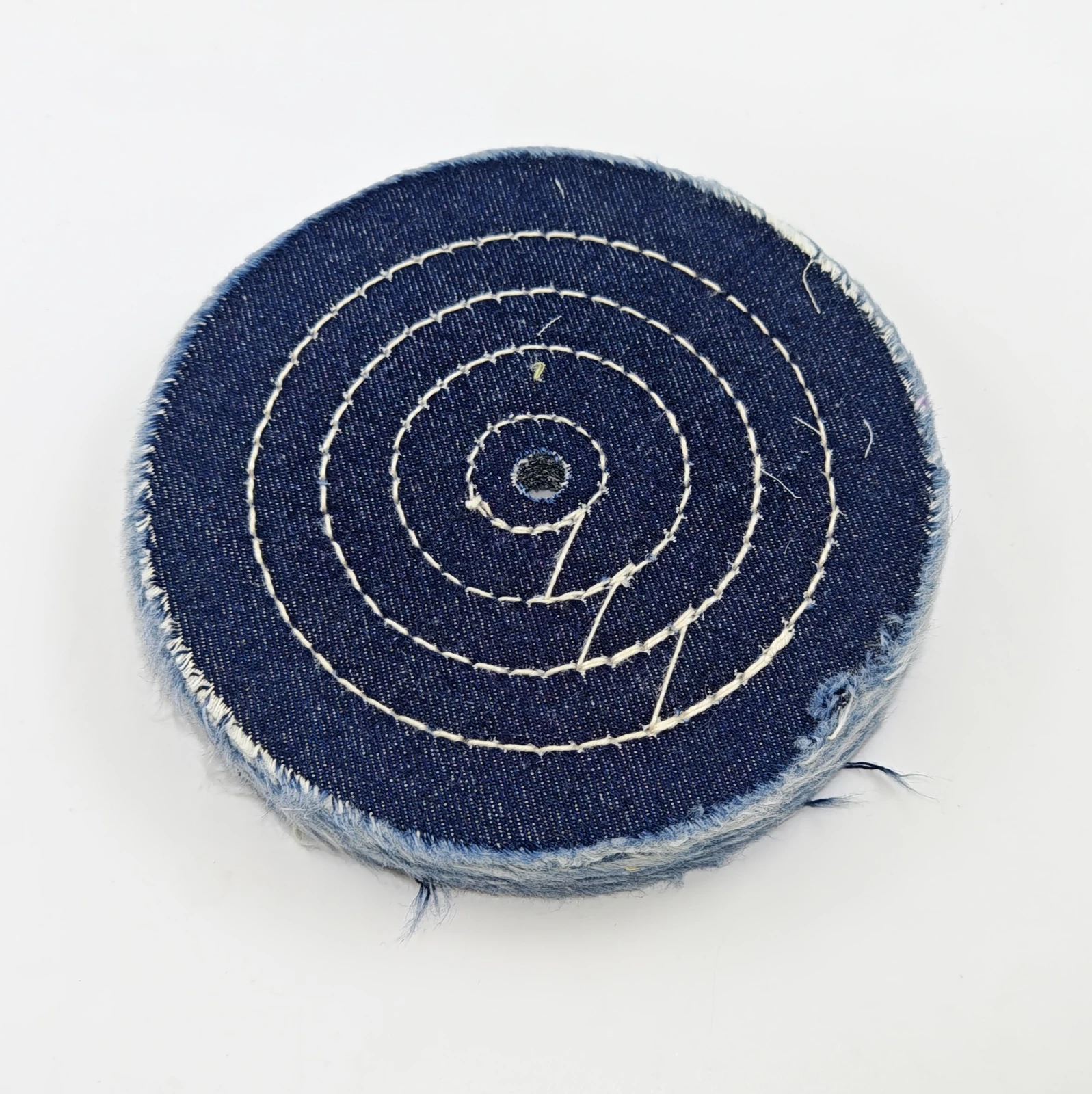

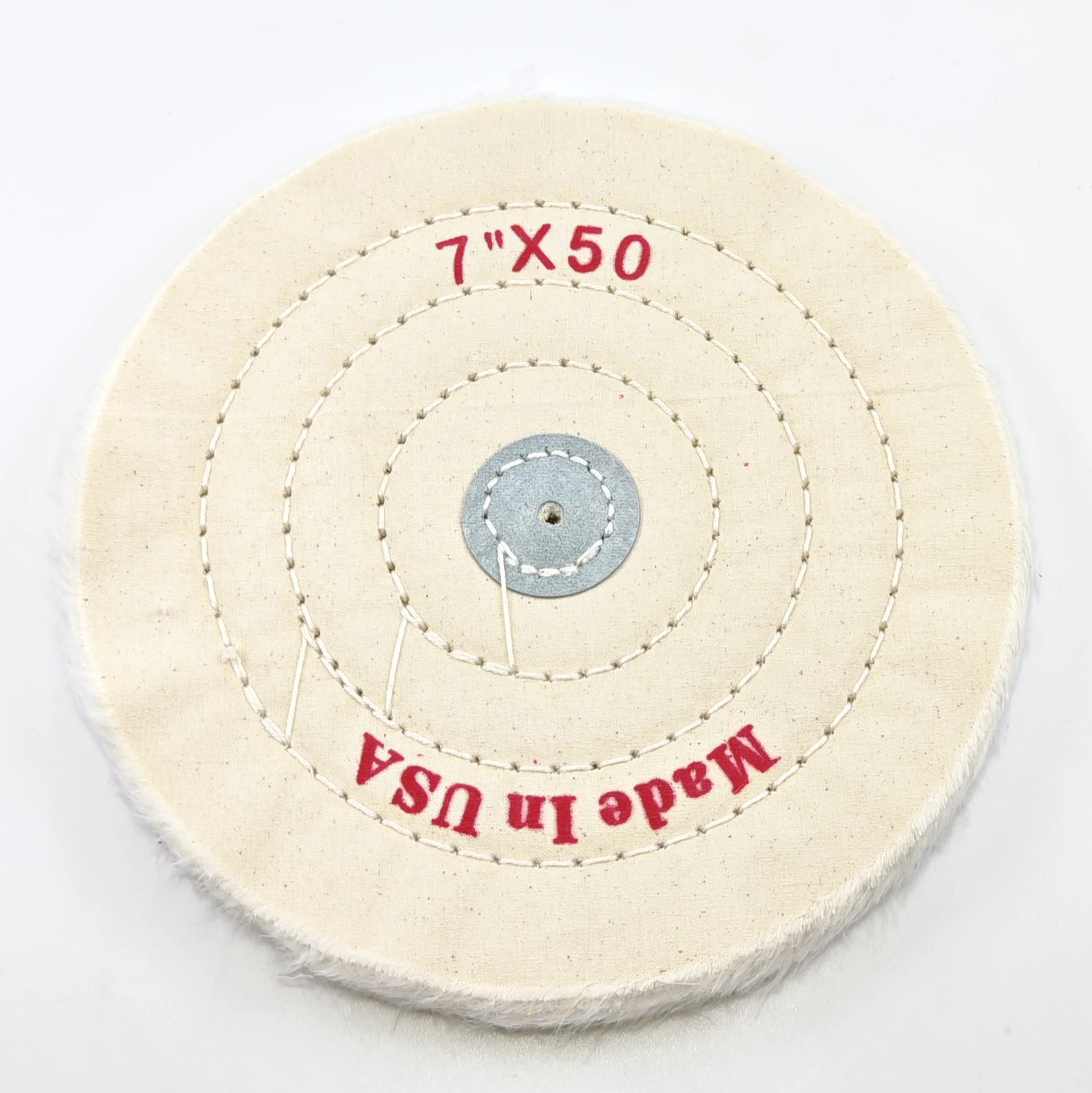

Request a quoteThis WanHu assortment shows several cotton buffing wheel constructions. Cotton fibers hold polishing compound well and provide a fine polishing action that can produce a high-gloss surface while limiting compound waste.
Select the construction and density for fine polishing of compatible metal, plastic and other workpieces. Use the wheel with the polishing compound specified for the material and finish stage.
| Brand | WanHu |
|---|---|
| Material | Cotton cloth |
| Finish stage | Fine polishing |
| Color shown | White and dark blue |
| Uses | Select the construction and density for fine polishing of compatible metal, plastic and other workpieces. Use the wheel with the polishing compound specified for the material and finish stage. |
| PPT source page | 3 |
A bigger wheel must run slower. The limit is set by peripheral speed (how fast the rim travels), not by a fixed RPM number — so the safe RPM drops as the diameter grows.
| Wheel diameter | Spec code | Max. safe speed | Peripheral speed at that limit |
|---|---|---|---|
| Ø 100 mm4" | 4 × 50 | ≤ 6,000 RPMMaker rating on small wheels — the arbor and guard set the real ceiling | 31.4 m/s |
| Ø 150 mm6" | 6 × 50 | ≤ 3,000 RPMMost common size — many makers rate it at 2,800 RPM | 23.6 m/s |
| Ø 200 mm8" | 8 × 50 | ≤ 2,200 RPM | 23.0 m/s |
| Ø 250 mm10" | 10 × 50 | ≤ 1,800 RPM | 23.6 m/s |
| Ø 300 mm12" | 12 × 50 | ≤ 1,400 RPM | 22.0 m/s |
Spec code format: diameter (inch) × ply count — 4 × 50, 5 × 50, 6 × 50, 7 × 50, 8 × 50, where 50 ply means 50 cotton layers. Finished thickness is 12 mm across the whole range.
Peripheral speed = π × diameter (m) × RPM ÷ 60
