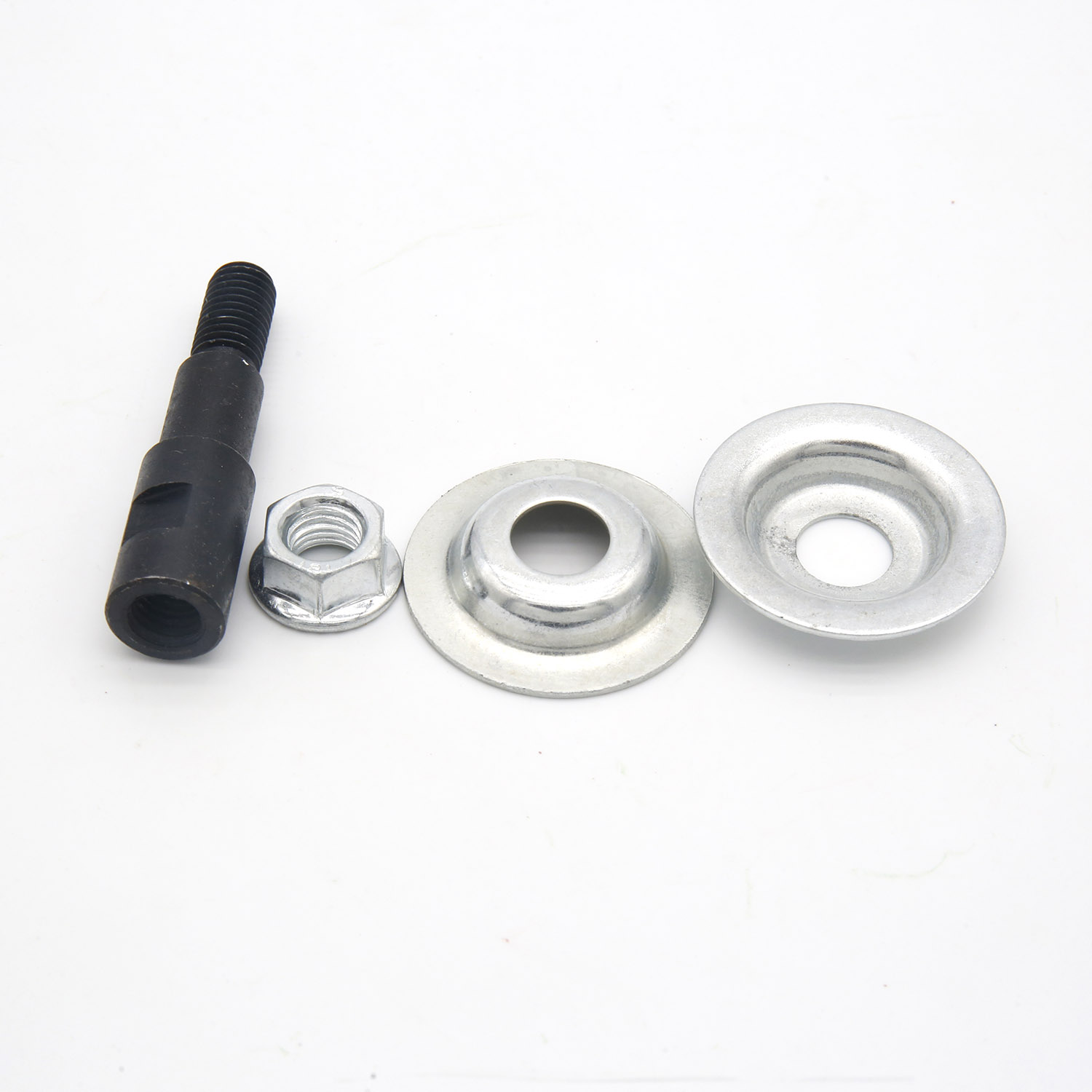

Steel Mandrel Mounting Hardware Kit for Buffing Wheels

Steel Mandrel Mounting Hardware Kit for Buffing Wheels

Request a Quote

The WanHu mandrel mounting hardware kit. Specifications: Colour: Steel · Material: Steel.

Send us an enquiry below and we will reply with pricing and lead time.

    Working on a bigger order?

    Ask about sample supply, volume orders and custom specifications.

    Request a quote
    SKU: WANHU-CB-33 Category: Tags: ,

    Description

    Product description

    This WanHu mandrel mounting hardware kit is built up from layers of steel cloth. It is part of the WanHu buffing wheel range, which covers diameters from 75mm to 250mm in several ply counts, colours and centre types so you can match the wheel to your machine and to the finish you need.

    Uses

    Used to mount cloth and buffing wheels on a bench grinder, polishing lathe or drill. Fit the flanges either side of the wheel and tighten by hand, then let the machine torque pull it up — overtightening crushes the cloth.

    Specifications

    Colour Steel
    Material Steel

    More wheels in this range

    Additional information

    Colour

    Steel
    Material

    Steel

    Reviews

    There are no reviews yet.

    Be the first to review “Steel Mandrel Mounting Hardware Kit for Buffing Wheels”

    Your email address will not be published. Required fields are marked *

    Safe Operating Speed

    A bigger wheel must run slower. The limit is set by peripheral speed (how fast the rim travels), not by a fixed RPM number — so the safe RPM drops as the diameter grows.

    Recommended peripheral speed20–30 m/sGeneral standard for metal mirror finishing
    Above 30 m/sDo not runWheel can shed or burst, and the workpiece burns black
    Safe maximum speed by wheel diameter
    Wheel diameterSpec codeMax. safe speedPeripheral speed at that limit
    Ø 100 mm4"4 × 50≤ 6,000 RPMMaker rating on small wheels — the arbor and guard set the real ceiling31.4 m/s
    Ø 150 mm6"6 × 50≤ 3,000 RPMMost common size — many makers rate it at 2,800 RPM23.6 m/s
    Ø 200 mm8"8 × 50≤ 2,200 RPM23.0 m/s
    Ø 250 mm10"10 × 50≤ 1,800 RPM23.6 m/s
    Ø 300 mm12"12 × 50≤ 1,400 RPM22.0 m/s

    Spec code format: diameter (inch) × ply count — 4 × 50, 5 × 50, 6 × 50, 7 × 50, 8 × 50, where 50 ply means 50 cotton layers. Finished thickness is 12 mm across the whole range.

    Check your own setup

    Peripheral speed = π × diameter (m) × RPM ÷ 60
